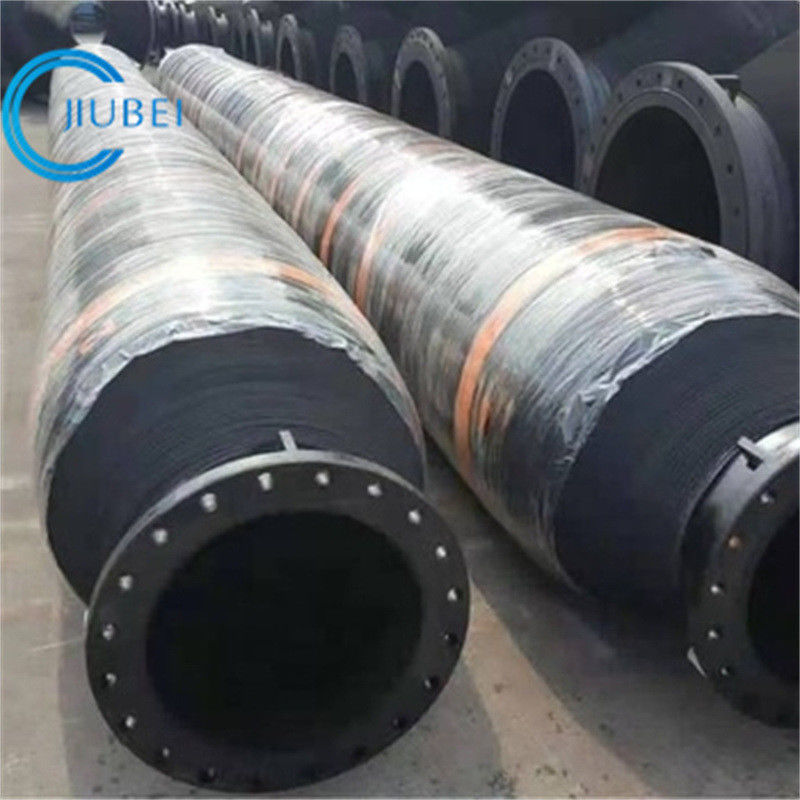

DN150 Flexible Water Suction and Discharge Rubber Hose with Flange 24inch Diameter

Product Details

Place of Origin: China

Certification: ISO9001:2015, ISO14001:2015

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiable

Payment Terms: LC, T/T

Get Best Price

Product Details

Product Description

Highlight:

Model NO.:	JB600	Tensile Strength:	81~130MPa
Unit Length:	Customized	Connection:	Steel Flanges
Working Pressure:	1-2MPa	Bursting Pressure:	3-6MPa
Transport Package:	Standard Sea Worthy Packaging	Specification:	DN150
Trademark:	Jiubei	Origin:	China
HS Code:	400922000	Supply Ability:	1000m/Month
After-sales Service:	Guide Site Installation	Warranty:	12month
Material:	Rubber	Kind:	Rubber
Water Absorption:	＜0.01%	Contraction Percentage:	＜0.4%
Samples:	US$ 50/Meter 1 Meter(Min.Order) \| Request Sam	Customization:	Available \| Customized Request

Model NO.:	JB600
Tensile Strength:	81~130MPa
Unit Length:	Customized
Connection:	Steel Flanges
Working Pressure:	1-2MPa
Bursting Pressure:	3-6MPa
Transport Package:	Standard Sea Worthy Packaging
Specification:	DN150
Trademark:	Jiubei
Origin:	China
HS Code:	400922000
Supply Ability:	1000m/Month
After-sales Service:	Guide Site Installation
Warranty:	12month
Material:	Rubber
Kind:	Rubber
Water Absorption:	＜0.01%
Contraction Percentage:	＜0.4%
Samples:	US$ 50/Meter 1 Meter(Min.Order) \| Request Sam
Customization:	Available \| Customized Request

DN150 Flexible Water Suction and Discharge Rubber Hose with Flange 24inch Diameter

No.1, Rubber Discharge Hose

Conventional discharge dredging hoses are most commonly used discharge rubber hoses in dredging project. The suitable conveyance matters of discharge hoses are usually mud, clay, fine sand, fine-mid sand, and so on.
The steel flanged discharge hoses are used with dredging pipeline for slit/gravels conveyance.The thickness of rubber hose is ranging from 18mm to 70mm. The suitable working temperature is from -20ºC to 50ºC. It is convenient to install, flexible to use, abrasion-resistant and bending-resistant.

Dimension of rubber discharge hose

I.D		W.P.	B.P.	Length	Reference Thickness
mm	Tolerance(mm)	bar	bar	m	mm
300	±2	4~12	36	1~3	34~37
450	±2	4~12	36	1~3	34~37
560	±3	4~12	36	2~3	40~45
600	±3	4~12	36	2~3	40~45
700	±3	8~15	45	2~3	40~45
800	±4	12~25	55	2~3	50~52
900	±4	15~25	75	2~3	55~58
1000	±5	20~25	75	3~5	75
1100	±5	25~30	80	3~5	90
Customer made acceptable.

No.2 Rubber Suction Hose

Installed in between the pump and cutter of the dredger,suction the slurry.Suction hose&Armored hose with HB steel ring in,suitable for limestone,granite,coral,and mineral etc.

Features: It has wind and wave resistance, corrosion resistance bears high working pressure, long service life, easy to assemble, etc.

Performance:
The steel flange suction hoses are used with dredgers for silt/gravels conveyance. Thickness of the pipe wall is from 31mm to 58mm. The suitable working temperature is from -20ºC to 50ºC. It is convenient to install, flexible to use, safe, abrasion-resistant and bending resistant.

Dimensions of Rubber Suction Hose

Size (inch)	I.D(mm)	W.P.(bar)	Length(m)
8	200	15~25	11.8
10	250	15~25	11.8
12	300	15~25	11.8
16	400	15~25	11.8
20	500	15~25	11.8
24	600	15~25	11.8
26	650	15~25	11.8
30	750	15~25	11.8
32	800	15~25	11.8
34	850	15~25	11.8
Other dimensions can be customized as requirements.

No.3, Self flaoting rubber hose

Features: It has wind and wave resistance, corrosion resistance and good self-floating performance, bears high working pressure, long service life, easy to assemble, etc

Features: one-time forming without weld, fully enclosed, corrosion resistant, aging resistant, and strong impact resistance; The internal filler is polyurethane foam, which is formed in one time and is not easy to break. It is especially suitable for construction in working waters with heavy wind and waves;
Performance:
1, Outer cover with excellent abrasion resistance and UV protection.
2, Wearing colored indicator layer.
3, Single foam floatation casing, preventing water absorption. The hose emergence above water is not less than 20%of the total volume.
4, High quality, wear resistant rubber .
5, Flange design according to customers' request.
6, Bending angle: In working condition, the bending angle is from 0° to 45°.

Purpose: It is mainly used for dredging and transportation pipelines in the sea and rivers.

Dimensions of rubber self floating hose

Size (inch)	I.D(mm)	W.P.(bar)	Length(m)
8	200	15~25	11.8
10	250	15~25	11.8
12	300	15~25	11.8
16	400	15~25	11.8
20	500	15~25	11.8
24	600	15~25	11.8
26	650	15~25	11.8
30	750	15~25	11.8
32	800	15~25	11.8
34	850	15~25	11.8
Other dimensions can be customized as requirements.

Rubber Discharge Hose Rubber Suction Hose Self Floating Rubber Hose

DN150 Flexible Water Suction and Discharge Rubber Hose with Flange 24inch Diameter 7

Installation of 11.8m length flanged high wear resistant HDPE pipeline applied for sand/slurry/mine discharging

DN150 Flexible Water Suction and Discharge Rubber Hose with Flange 24inch Diameter 8

Cases of 11.8m length flanged high wear resistant UHMWPE pipeline applied for sand/slurry/mine discharging
