Product Details
Place of Origin: China
Certification: ISO9001:2015, ISO14001:2015
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiable
Delivery Time: 30-60days
Payment Terms: LC, T/T
Model NO.: |
JY33 |
Type: |
H-Section Steel |
Standard: |
GB |
Trademark: |
Carbon Structural Steel, Jiuyuan |
Forming: |
Hot-Rolled Steel |
Connection Form: |
Bolt Connection |
Member: |
Steel Column |
Type Of Steel For Building Structure: |
High-Strength Steel |
Carbon Structural Steel: |
Q235 |
Residential Wall Structure: |
Wall Stud |
Application: |
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway And Floor, Steel Structure Bridge |
After-sales Service: |
Guide Site Installation |
Warranty: |
12month |
Transport Package: |
Standard Sea Worthy Package |
Specification: |
50m2 |
Origin: |
China |
HS Code: |
9406900090 |
Supply Ability: |
3000tons/Month |
Tolearance: |
1% |
Life Span: |
50 Years |
Drawing Design: |
Sap2000/Autocad /Pkpm /3D3s/Tekla |
Surface Treatment: |
Painted/Hot Galvanised |
Certificate: |
ISO9001/SGS |
Customization: |
Available | Customized Request |
Model NO.: |
JY33 |
Type: |
H-Section Steel |
Standard: |
GB |
Trademark: |
Carbon Structural Steel, Jiuyuan |
Forming: |
Hot-Rolled Steel |
Connection Form: |
Bolt Connection |
Member: |
Steel Column |
Type Of Steel For Building Structure: |
High-Strength Steel |
Carbon Structural Steel: |
Q235 |
Residential Wall Structure: |
Wall Stud |
Application: |
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway And Floor, Steel Structure Bridge |
After-sales Service: |
Guide Site Installation |
Warranty: |
12month |
Transport Package: |
Standard Sea Worthy Package |
Specification: |
50m2 |
Origin: |
China |
HS Code: |
9406900090 |
Supply Ability: |
3000tons/Month |
Tolearance: |
1% |
Life Span: |
50 Years |
Drawing Design: |
Sap2000/Autocad /Pkpm /3D3s/Tekla |
Surface Treatment: |
Painted/Hot Galvanised |
Certificate: |
ISO9001/SGS |
Customization: |
Available | Customized Request |
| Steel structure office building | |
| Item | Specification |
| Steel column | Q235,355B welded square tube column/Box column |
| Steel beam | Q235,355B welded H section steel/hot-rolled H section steel |
| Steel purlin | C/Z section purlin or square tube column |
| Downpipe | UPVC |
| Gutter | Stainless steel gutter/UPVC gutter |
| Roof material | Corrugated steel sheet/sandwich panel |
| Wall material | Sandwich panel and glass curtain wall |
| Door | Aluminium door |
| Window | Aluminium window |

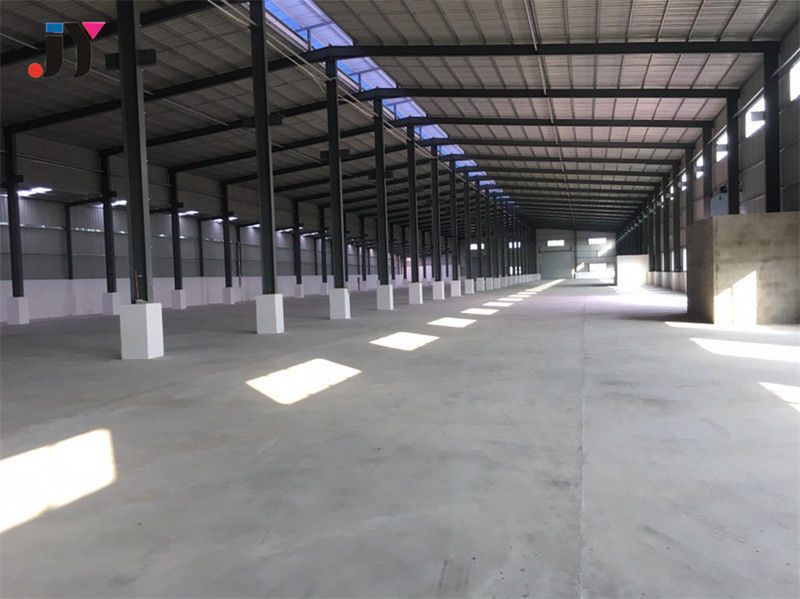

1, Detailed Pictures of Steel structure building
Packaging and shipping for Build Steel Structure Building Commercial Industrial Prefabricated Metal Warehouse
Installation of Steel structure building
Installation of steel structure building
1.Foundation construction (pre-embedded anchor bolts), detail need to according to the foundation construction drawing.
2.Column installation
One worker commands truck crane how to move, 3 ~ 4 workers cooperate with crane to install the steel column, put column to anchor bolt location.
3.Beam installation
After completing the installation of adjacent two steel column, then main beam begin to install.
4.Installing roof & wall purlin
The roof and wall purlin will be installed after finishing column and beam. Bolting the purlin on the main structure.
5.Fixing wall and roof sheet
To fix the wall sheet on wall purlin by self-tapping screw; then fix the roof sheet.
6.Fixing the cover
To install the cover on the corner, eave, window and door opening.
7,Install windows and doors.
Benefits of Steel structure building
